Corrugated Steel Pipe

We open the future value with technology-based challenges and innovations.

Corrugated Steel Pipe

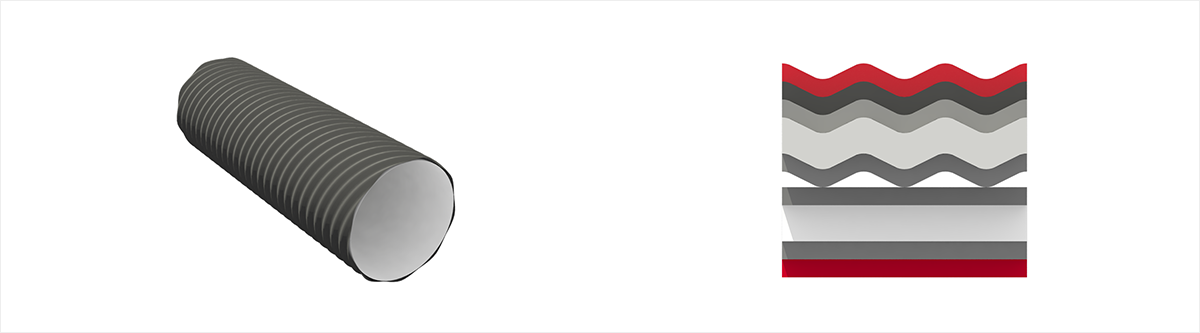

Double wall polymer coated corrugated steel pipe

It is a type of corrugated steel pipe of which the inner circumferential surface is made of a flat steel plate, and the outer circumferential surface is made of a corrugated steel plate.
The inner surface is coated with PVC SOL powder on aluminum-zinc alloy-coated steel plate (KS D 3862); whereas the outer surface is manufactured by heat-sealing an anti-corrosive PE (polyethylene) film to hot-dip galvanized steel plate (KS D 3506), which is the same method as that of anti-corrosive Polymer coated corrugated steel pipe. This product has a lower roughness coefficient and external pressure strength than anti-corrosive Polymer coated corrugated steel pipe.

Inner and outer circumferential surface (both-sided) coated corrugated steel pipe
Features

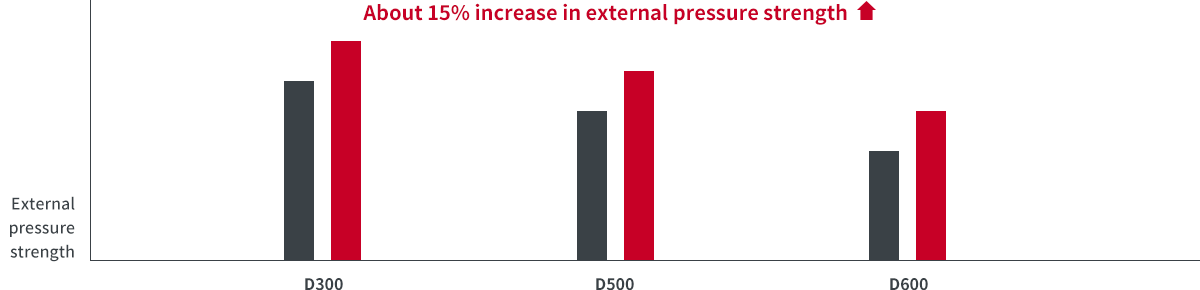

It has a significantly higher water-permeability(i.e., roughness coefficient) and excellent external pressure strength than other products.
Moreover, as the interior is flat, foreign substances and soil cannot be not deposited, so it has long-term durability performance.

Comparison of water permeability (roughness coefficient)
Based on D600
Product name Water permeability(Roughness coefficient)
Concrete pipe 0.015 ~ 0.017
Corrugated metal pipe 0.018 ~ 0.022
Inner flat type corrugated steel pipe 0.011 ~ 0.015
Normative references for Double wall type Polymer coated corrugated steel pipe
  • ASTM A742/A742M :

    Standard Specification for Steel Sheet, Metallic Coated and Polymer Precoated for Corrugated Steel Pipe

  • KS D 3590 (KS Certified) :

    Corrugated steel pipes and sections

  • SPS-KMIC-001-1966 (SPS Certified) :

    Anti-corrosive coated screw steel pipes and connectors

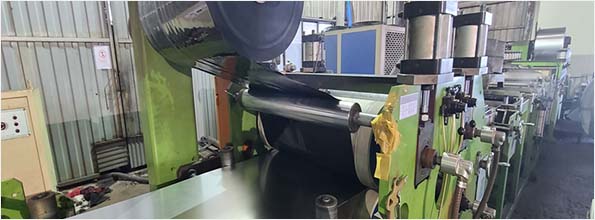

Manufacturing process for Double wall type Polymer coated corrugated steel pipe

It is produced in the same manner as the corrugated steel pipe using coated coil and PVC coated steel plate in which an anti-corrosive PE (polyethylene) film is heat-sealed.

  • 1. Outer surface steel plate coating
  • 2. Production of double wall type Polymer-coated corrugated steel pipe
Specification of anti-corrosive PE (polyethylene) film and PVC SOL
Thickness of coating
PE film (outer surface) PVC SOL(inner surface)
0.25mm 이상 0.15mm 이상

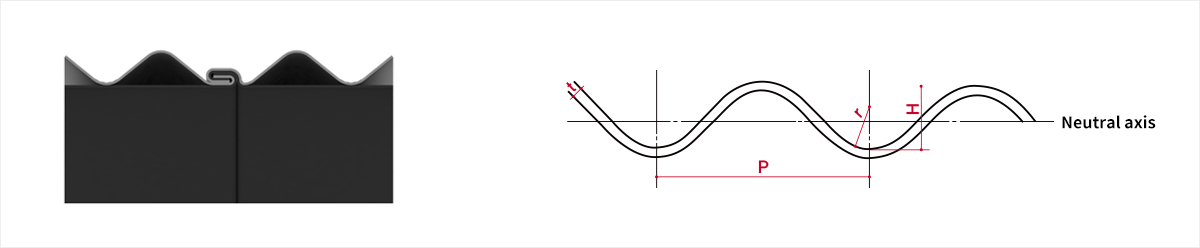

내부평활형 피복 파형강관 생산 규격
Scroll to the right
Specification Type of coating Nominal diameter Thickness of outer surface (mm) Thickness of inner surface(mm)
1RS PVC inner surface coating 300 ~ 1800 1.6, 2.0, 2.7, 3.2 0.4
PE outer surface coating
3RS PVC inner surface coating 900 ~ 3000 1.6, 2.0, 2.7, 3.2
PE outer surface coating

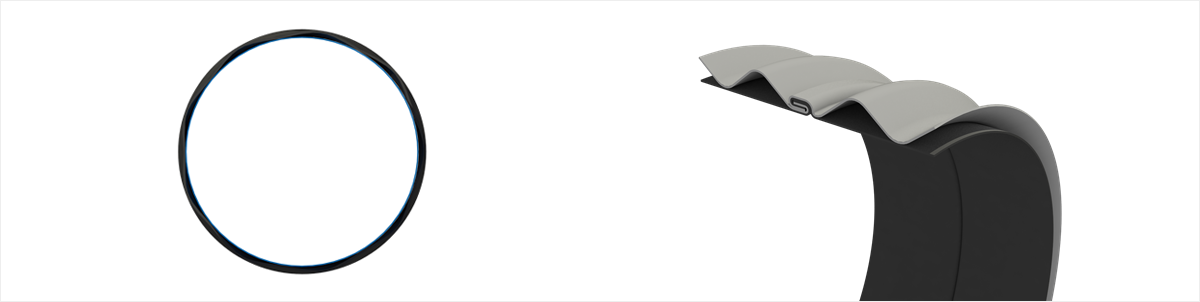

Cross-sectional shape

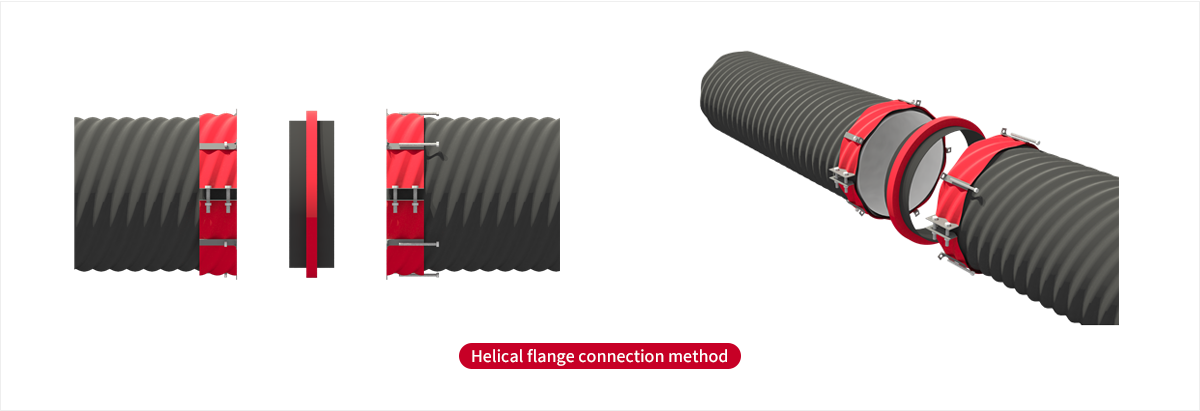

Joining method

The connection method of double wall type polymer coated corrugated steel pipe is as follows.
