What is a valve chamber?

It is installed on the back road of sidewalks and small roads to manage water valves, air valves and flow meters, pressure reducing valves, etc. in the drain pipe network for supplying tap water, general water, sewerage, and agricultural water to facilitate cleaning and maintenance of valves,etc. fabricated structure

Water treatment steel products and systems for construction and civil engineering.

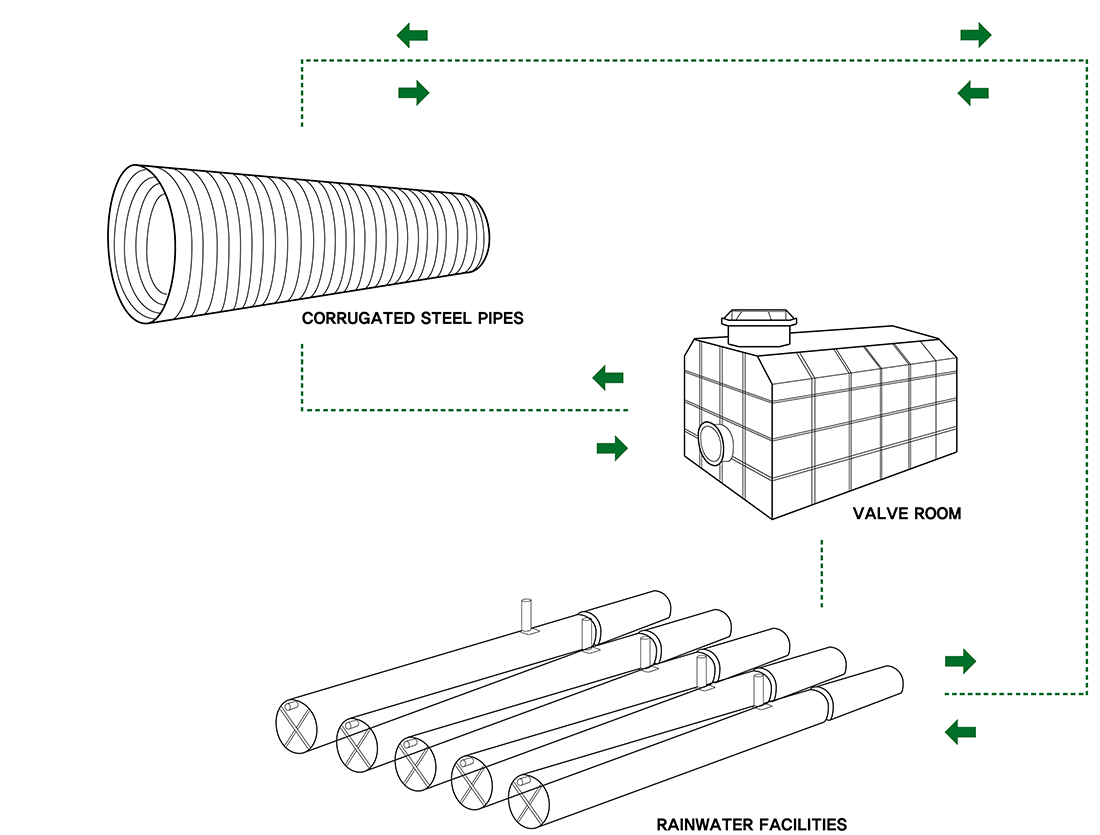

Valve Chamber Use

01
Drain valve
02
Pressure relief valve
03
Air valve
04
Pump room
05
Flow meter room
06
Blow off room

Features

By installing a finished product made of rolled steel (SS275, former SS400), it shortens the construction period and reduces civil complaints compared to the existing valve chambers.
Using KP mechanical socket for the main water outlet joining part, it is easy to fit for the site customization, and there is no leakage.
An inlet is installed in the upper part of valve chamber to allow easy entry and provide a pleasant environment for on-site construction in summer.
A ladder is installed on the inner wall of valve chamber to make it easier to access.
A water collecting well is installed on the bottom of valve chamber to facilitate water drainage generated during work.
Reinforced ribs are installed on the outer wall and ceiling of valve chamber, so it is structurally stable, lightweight, and compact.
On the wall of valve chamber, wires, vents, and drains can be installed at desirable locations to configure the interior in various uses and shapes.
부Epoxy-coating is treated after shot process for anti-corrosion

Product Figure

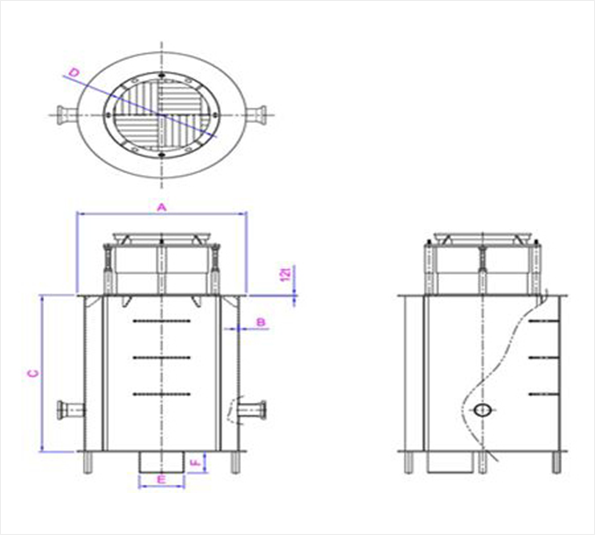

Circular valve chamber

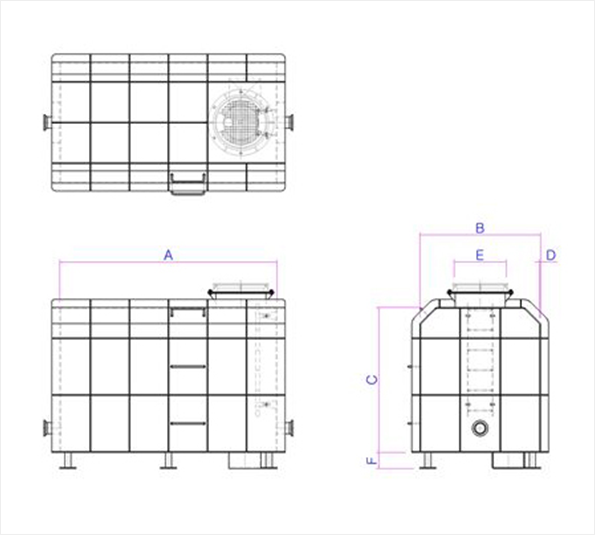

Square valve chamber

Specification

Scroll to the right

	Thickness(t)	Width(w)	Depth(d)	Height(h)
Circular	8, 10, 12mm	900 - 3000	-	1200 - 4000
Square	10, 12mm	1200 - 5000	1200 - 3000	1500 - 3000
