Corrugated Steel Plate

We open the future value with technology-based challenges and innovations.

Corrugated Steel Plate

What is Corrugated Steel Plate?

Corrugated steel plate is a structural material that increases flexural rigidity, internal force, and durability by forming corrugations on a steel plate with certain specifications and has the characteristics of buried structure that supports the load through interaction with the surround ground.

Product Figure

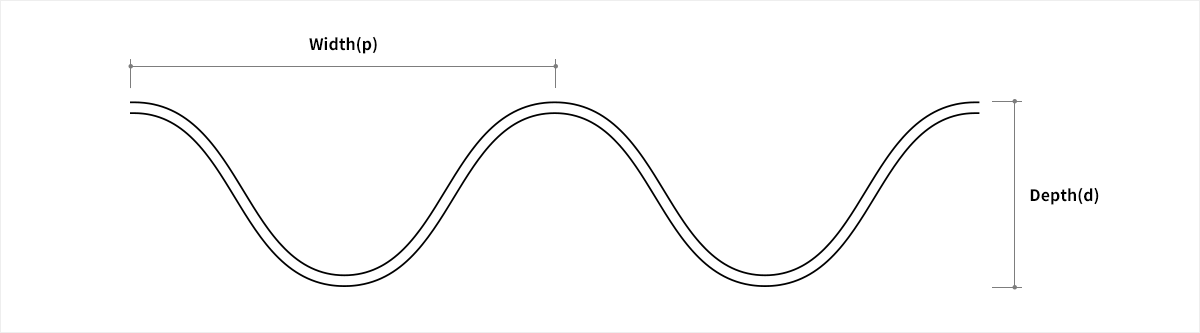

Specification – Deep Corrugation
Thickness(t) Width(p) Depth(d)
3.4~9.0mm 381mm 140mm

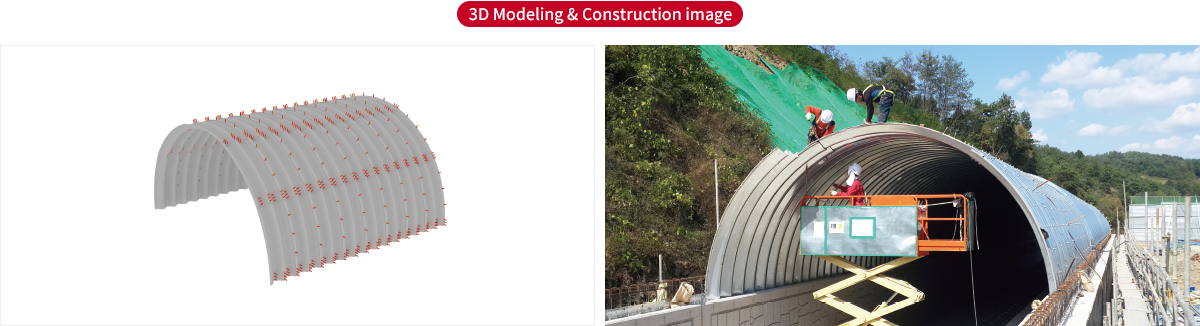

Manufacturing and assembly process
  • Law material steel coil
  • Corrugation of steel plate
  • Bending based on design
  • Assembly
  • Completion of corrugated steel plate structure
  • Construction complete

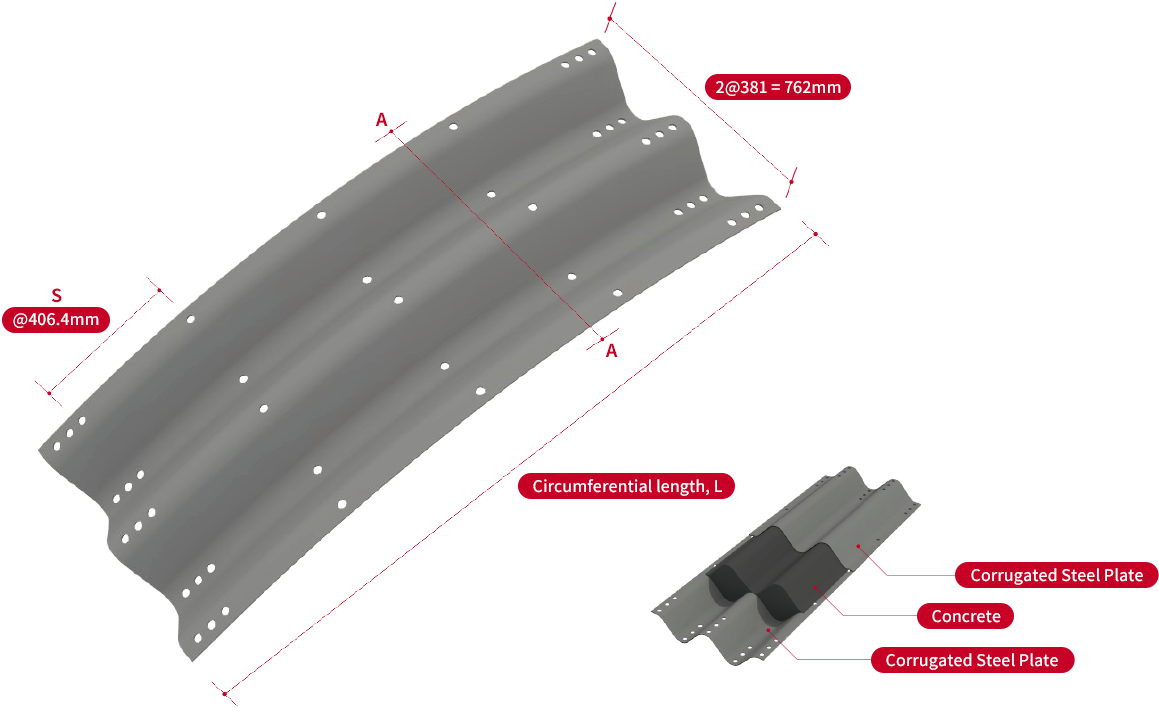

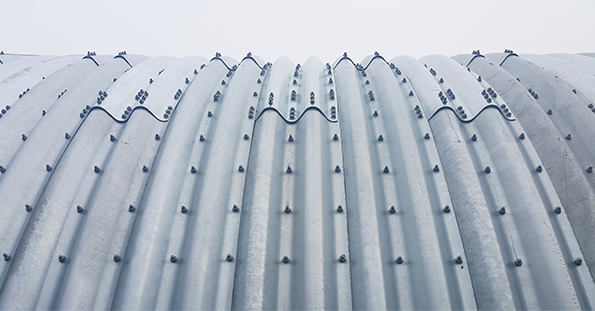

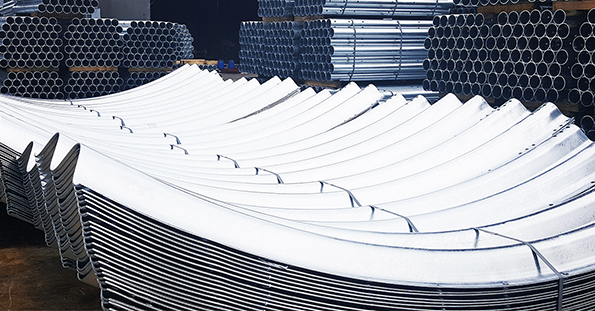

Deep Corrugated steel plate

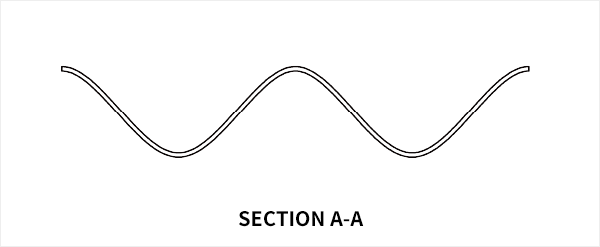

  • As shown in Section A-A, the pitch and depth of the corrugated steel plate is three times larger than that of the standard corrugated steel plate, which improves the structural load resistance against the stress concentration caused by the high backfill and unbalanced earth pressure.
  • Unlike conventional products bent with press brake machines, the accuracy of product specifications can be improved with the roll forming process, and L, the circumferential length of the existing steel plate can be extended from 4.7m to 7.2m.

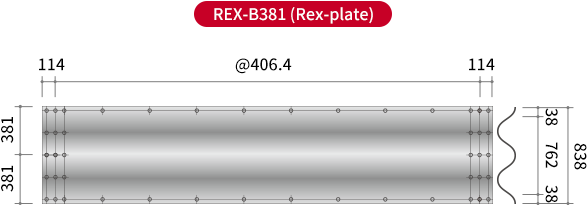

Specification of corrugated steel plate
S (406.4mm) NET WIDTH (mm) WIDTH (mm)
3 1219.2 1447.2
4 1625.6 1853.6
5 2032.0 2260.0
~
15 6096.0 6324.0
16 6502.4 6730.4
17 6908.8 7136.8

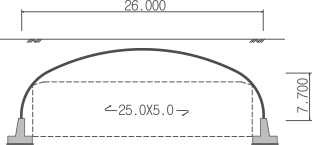

Cross-sectional shape
  • Pure arch
  • High profile arch
  • Low profile arch
  • Box-type
  • Round-type
  • Horizontal ellipse
  • Pipe arch
  • Underpass
End treatment

Mechanical properties

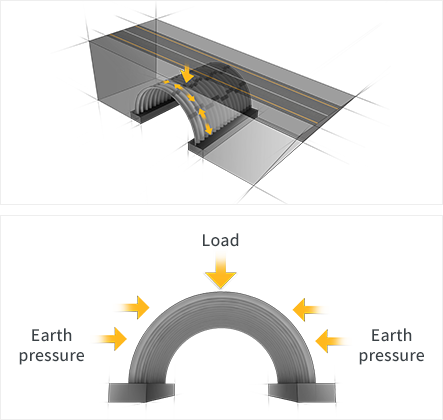

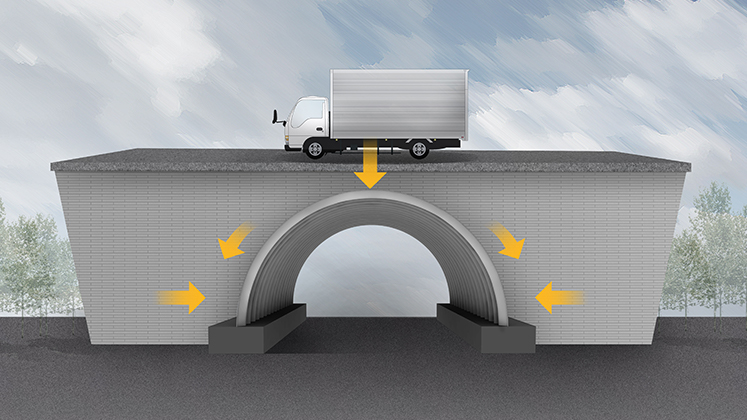

When vertical earth pressure is generated on the upper part of the corrugated steel plate structure, lateral earth pressure resists. At this time, the vertical and lateral earth pressure becomes constant, referred to as load distribution. This load distribution (ring compression effect) suppresses the bending development and has a structural characteristic in which the compressive force acts.

Requirements of raw materials for corrugated steel plate (KS D 3503, KS D 3506)
Scroll to the right
Material number Chemical composition Mechanical properties
C(%) Si(%) Mn(%) P(%) S(%) Zinc Amount (g/㎡) Yield strength (MPa) Tensile strength (Mpa) Elongation
t≤0.05 t≤0.05
SS275(SS400) ≤ 0.25 ≤ 0.45 ≤ 1.40 ≤ 0.050 ≤ 0.050 900 ≤ 275 ≤ 410~550 21≤ 18≤
SS315(SS490) ≤ 0.28 ≤ 0.50 ≤ 1.50 ≤ 0.050 ≤ 0.050 900 ≤ 315 ≤ 490~630 19 ≤ 16 ≤
SS410(SS540) ≤ 0.30 ≤ 0.55 ≤ 1.60 ≤ 0.040 ≤ 0.040 900 ≤ 410 ≤ 540 ≤ 16 ≤ 14 ≤
SS450(SS590) ≤ 0.30 ≤ 0.55 ≤ 1.80 ≤ 0.040 ≤ 0.040 900 ≤ 450 ≤ 590 ≤ 14 ≤ 12 ≤

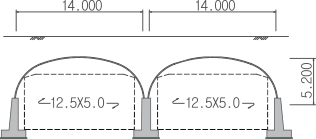

Applied section
Scroll to the right
Reinforced concrete structure Corrugated steel plate structure
Passageway
Waterway
Open-cut Tunnel
Bridge
