Name: Wonder Arch Liner 400×200
Brand: Rexsteel co.,ltd

Wonder Arch Liner 400×200

Deep corrugated steel liner for multi-bay, canopy-type and alert aircraft shelters

What is the Wonder Arch Liner 400×200 (Steel Rolled Arch Liner)?

The Wonder Arch Liner 400×200 is a deep corrugated steel liner — 400 mm pitch × 200 mm depth — installed on the inner face of reinforced concrete (RC) arch aircraft shelters. During concrete placement it acts as a stay-in-place form; once the shelter is complete it serves as a spall liner, preventing concrete fragments from falling into the bay. It has been developed for multi-bay shelters and for alert shelters with canopy sections outside the blast doors.

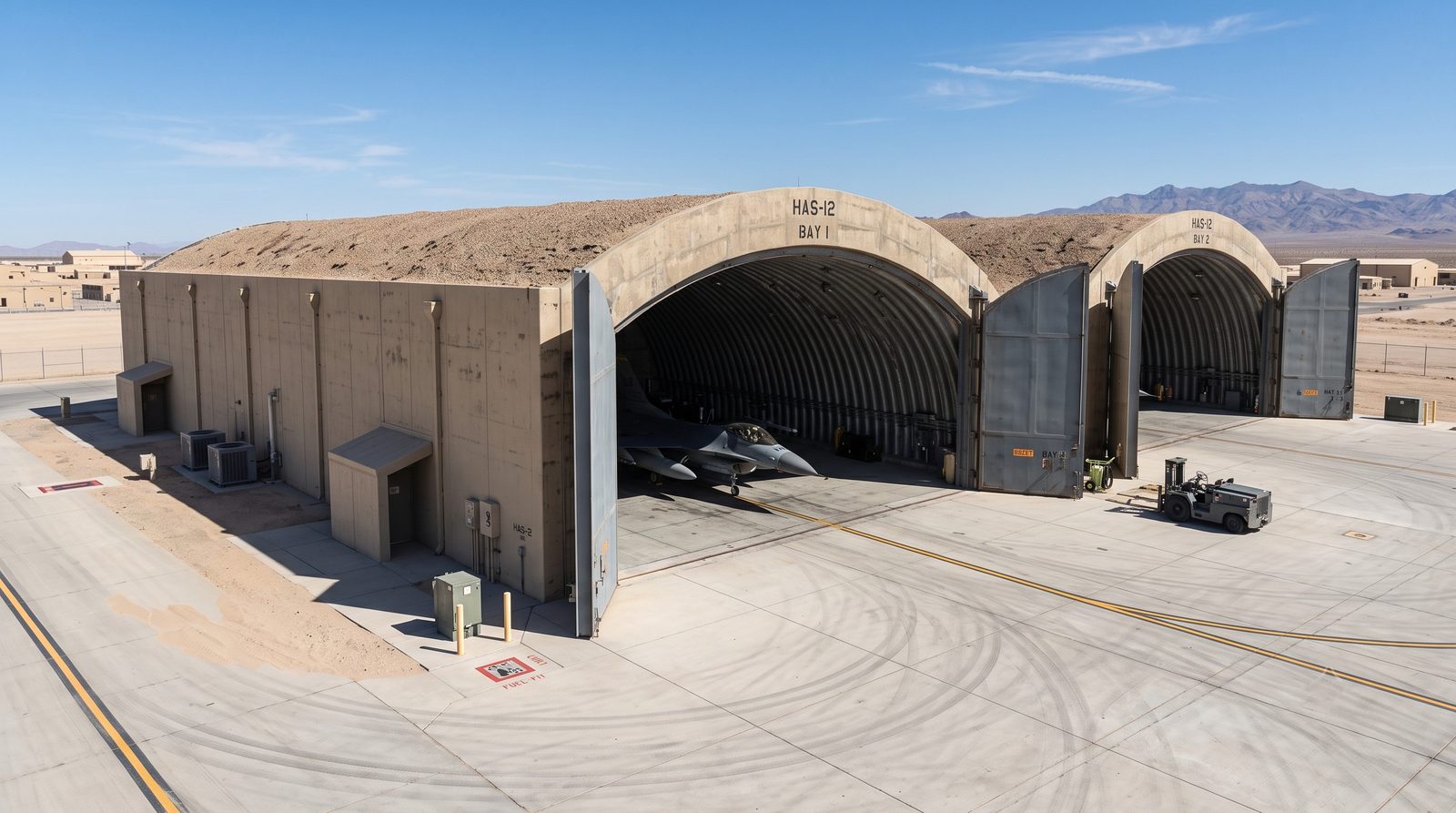

Multi-bay arch hardened aircraft shelter using the Wonder Arch Liner 400×200 — Multi-bay arch hardened aircraft shelterIllustration

Features

Deep corrugation, high stiffnessA 200 mm corrugation depth delivers high flexural stiffness on large arch surfaces.
Wide thickness range3 · 4 · 5 · 6 · 7 · 8 mm, selected to suit the design conditions.
Precision roll formingRoll formed for accurate dimensions and bolted together on site.
Optional concrete anchorageWhere the design requires anchorage, headed studs are welded with a stud gun (option).

Specifications

Pitch	400 mm
Depth	200 mm
Thickness	3 · 4 · 5 · 6 · 7 · 8 mm
Material	Structural steel plate (high-strength grades available)
Surface treatment	Hot-dip galvanizing or pre-coated coil, to specification
Installation	Inner face of the RC arch, bolted seams
Option	Headed stud welding (stud gun)
Design support	Design support based on UFC 3-340-02

Two Liner Systems

Rexsteel co.,ltd supplies two steel liners to suit the type of shelter.

Item	Wonder Arch Liner 610×355	Wonder Arch Liner 400×200
Corrugation	610 × 355 mm	400 × 200 mm
Application	3rd-generation HAS (single-bay arch shelter)	Multi-bay, canopy-type and alert aircraft shelters
Structural concept	Steel arch erected first, concrete placed over it	Stay-in-place form and spall protection on the inner face of the RC arch; headed studs welded where anchorage is required (option)
Thickness	3.2 / 4.0 / 4.5 mm	3 / 4 / 5 / 6 / 7 / 8 mm
Related criteria	UFC 3-340-01, UFGS 05 30 00	UFC 3-340-02

Applications

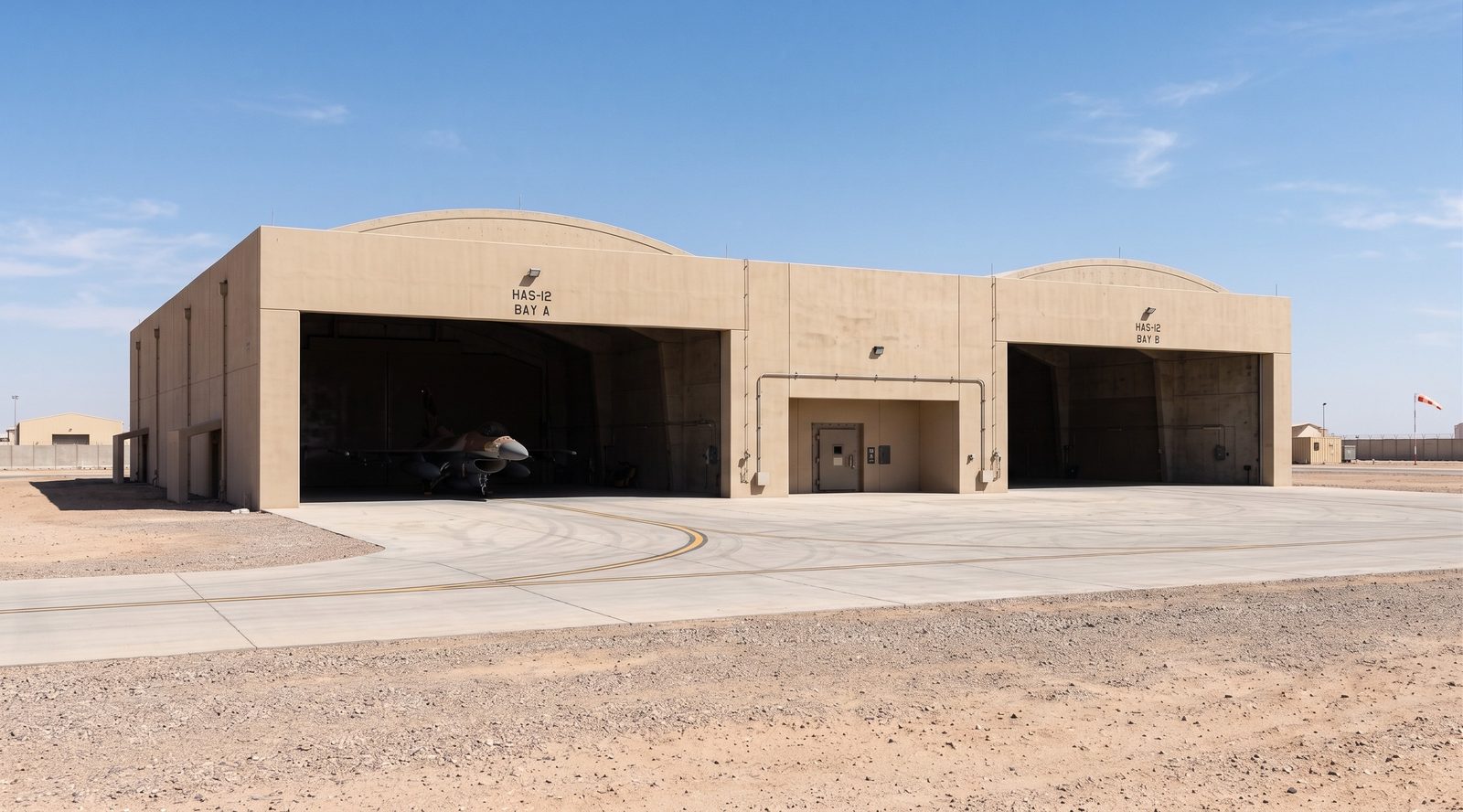

Multi-bay, canopy-type and alert hardened aircraft shelters

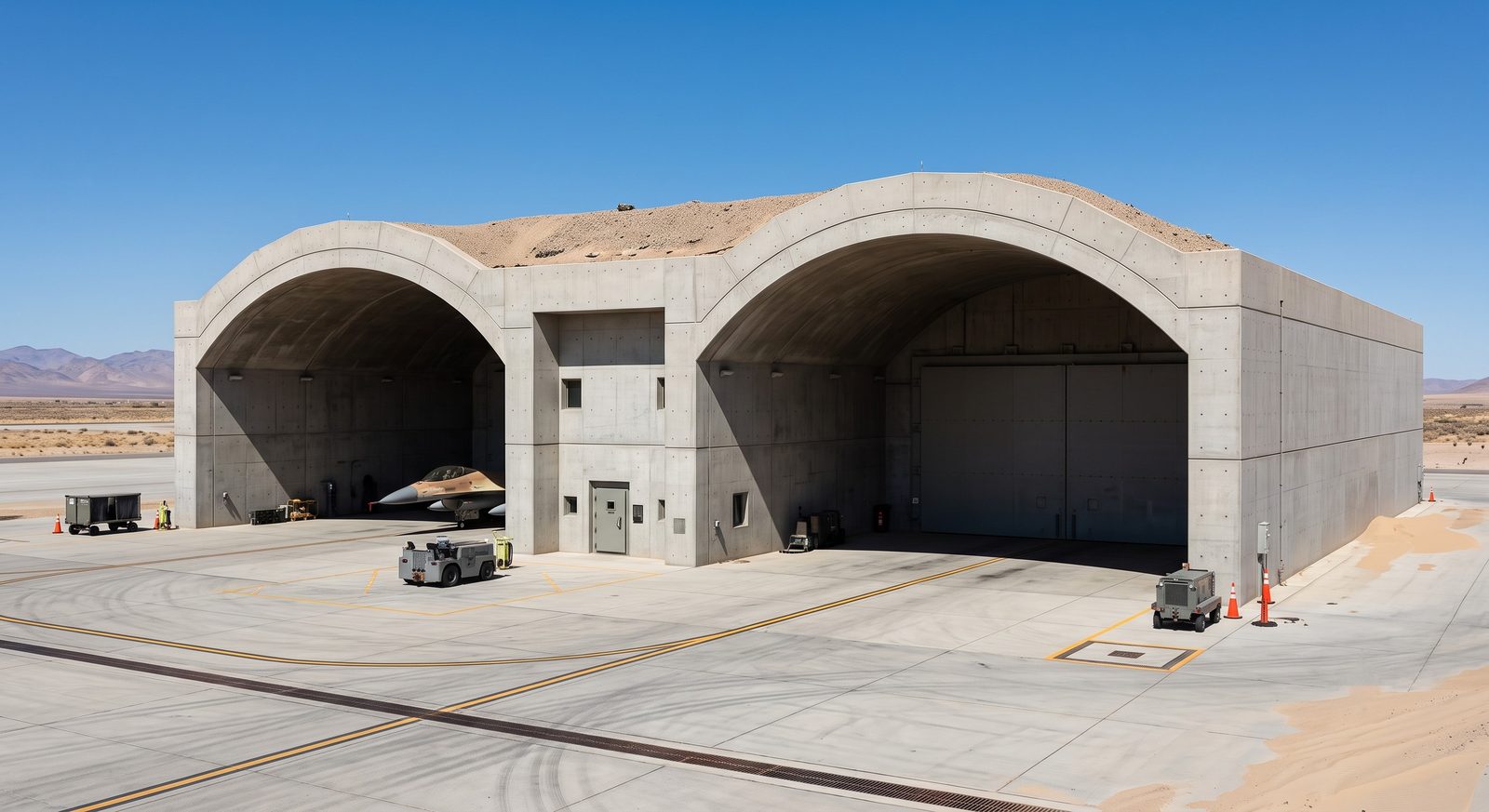

Interconnected bays, and ceiling and side-wall liners for canopy sections outside the blast doors
